24V LED Light Bar

High CRI - Multiple Sizes - Dimmable

This small LED Light Bar Series can be used for indoor installations where 24V diffused LED lighting with no visible diodes is needed.

Description

This modular and sleek 24V LED Light Bar fixture is available in 12 inch and 20 inch LED Light Bar and are very easy to install. Our dimmable under cabinet LED lighting comes in 3 options of Color Temperature (CCT) 3000K, 4000K, and 5500K. This light bar fixture has a Color Rendering Index (CRI) >90 (out of 100)

The light source on this dimmable LED under cabinet light bar is continuous with no visible light dots or dark spots. The light is crisp and bright and will make your illuminated area look impressive.

To install, use the included mounting brackets to attach your chosen size of to a surface or under cabinet, unite the bars with the included connectors. Once installed, connect to our and voila! Optional and connector cables as LED bar accessories (in case you need to leave a space in between) are also available.

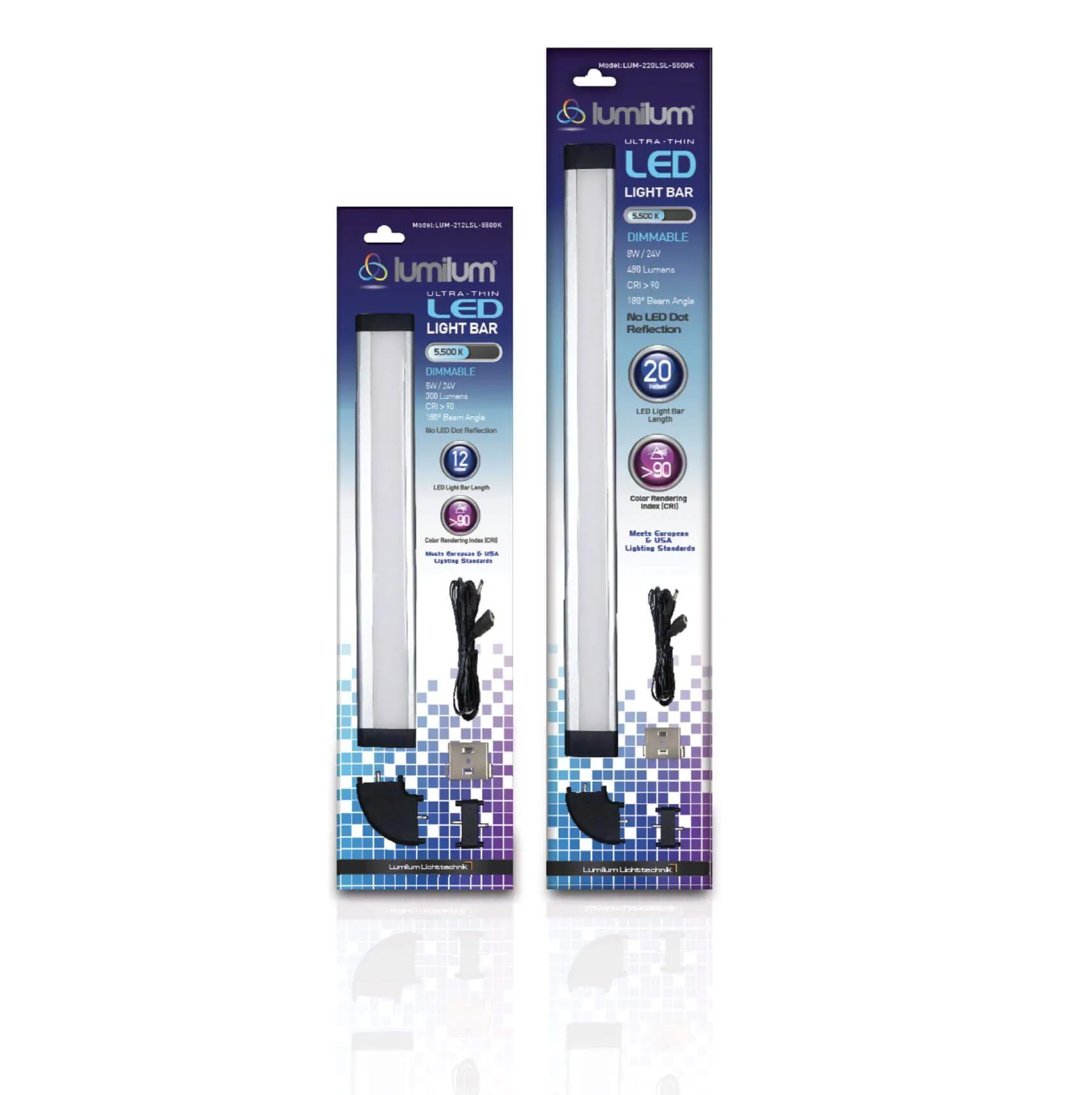

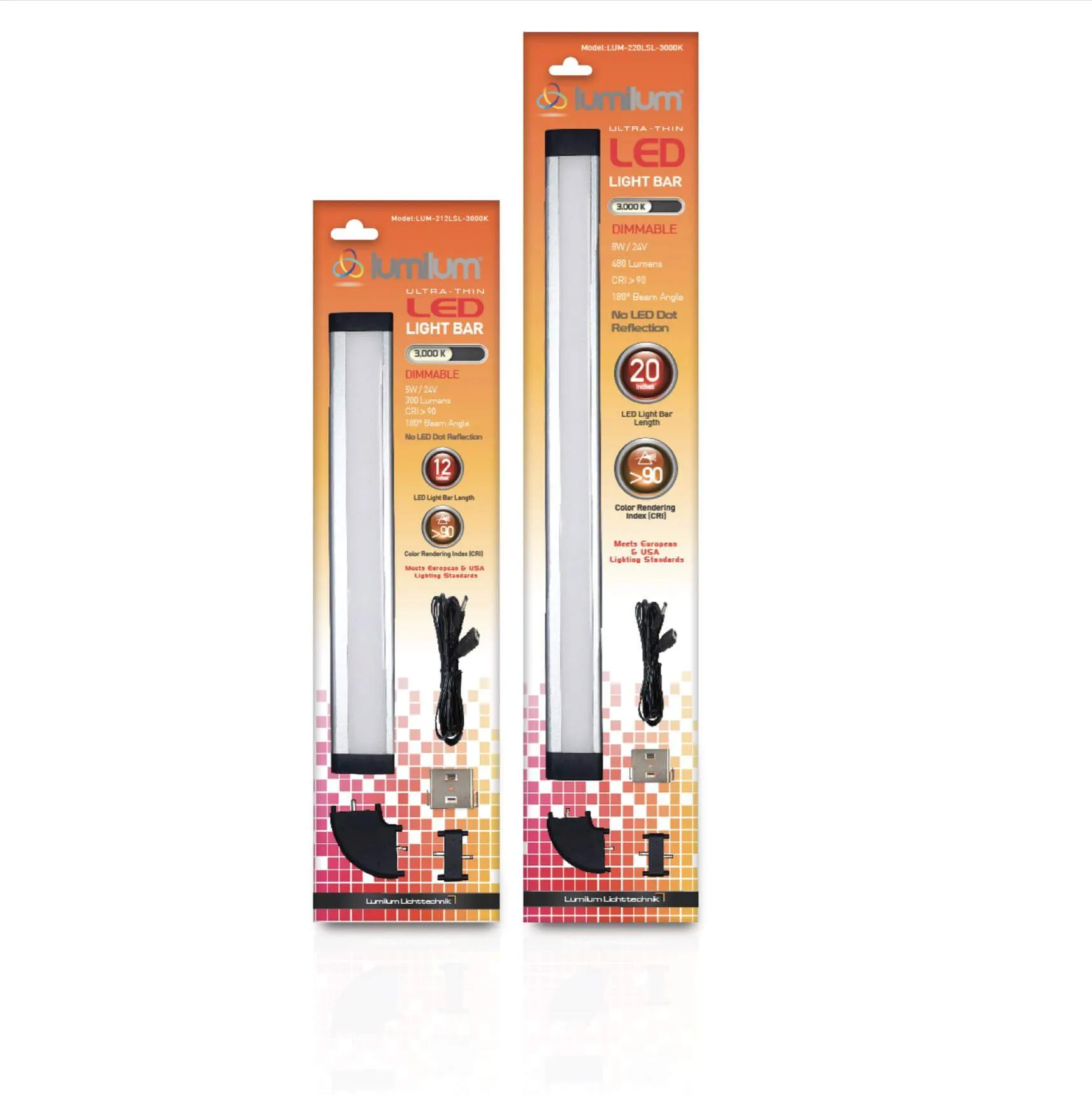

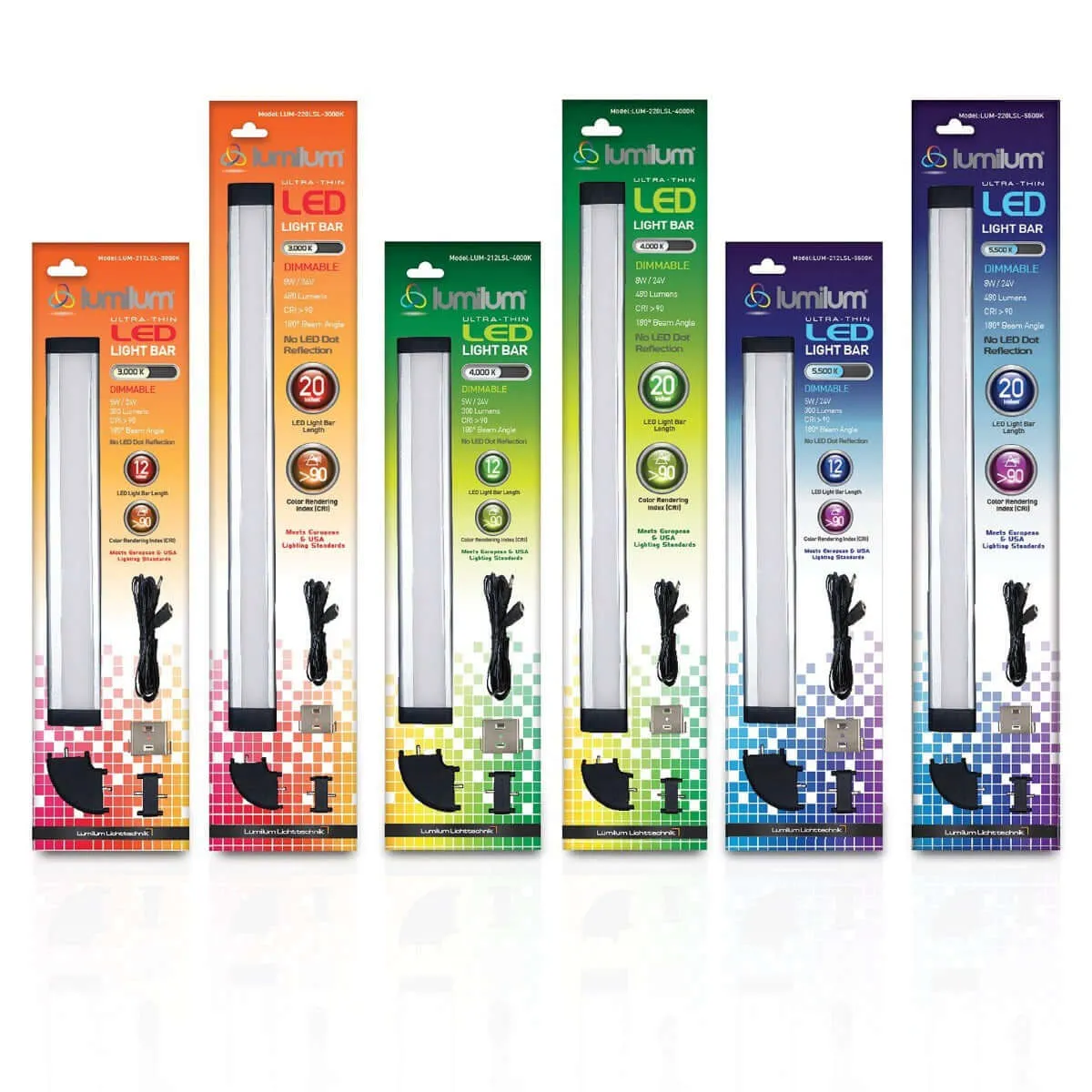

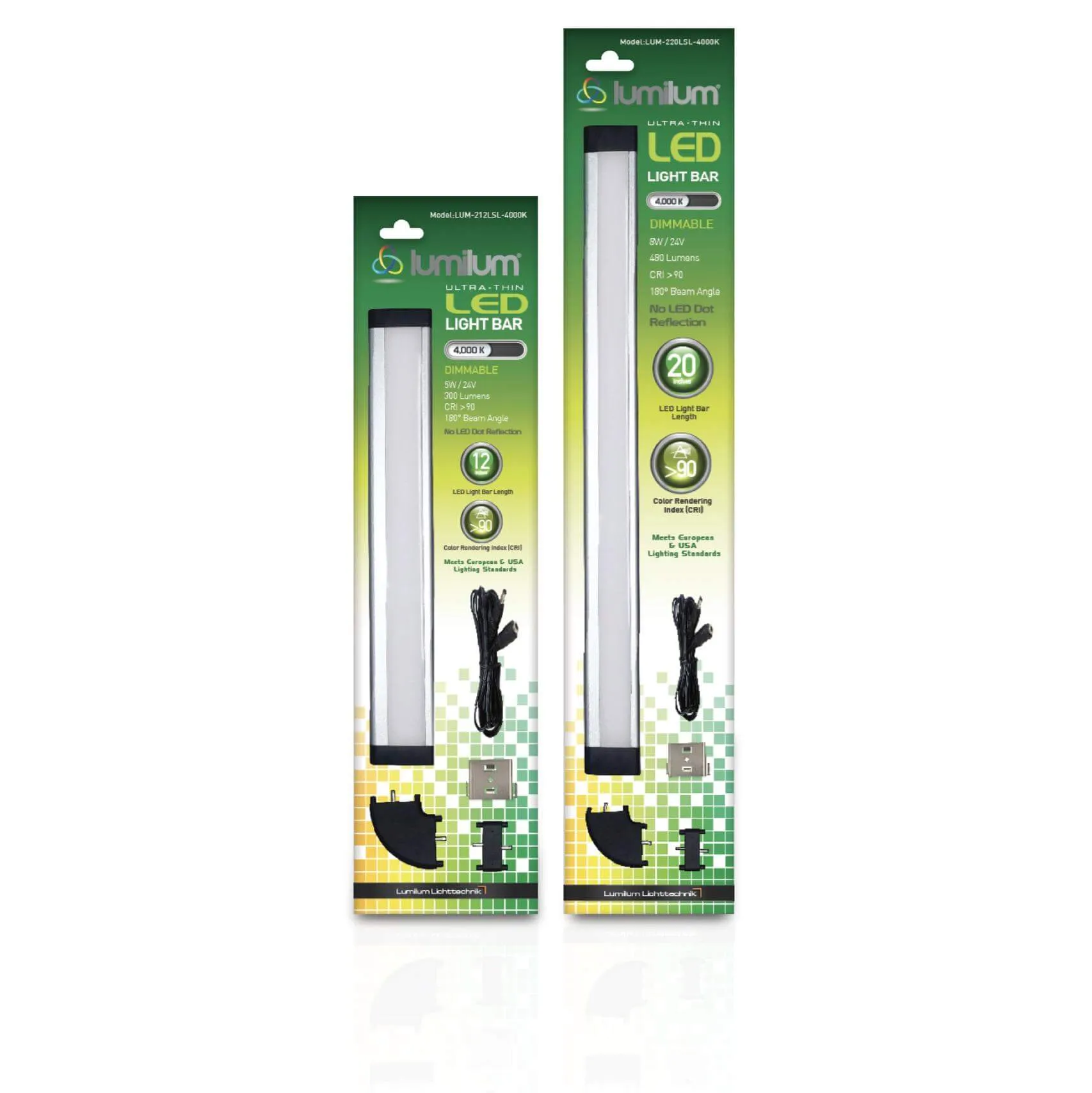

Under Cabinet LED Light Bar Blister Pack Contents:

1x LED Under Counter Light Bar (your choice of size)
1x Mounting Bracket
1x Straight Connector
1x Angled 90 Degree Connector

Key Features

24V Low Voltage
UL Listed
Aluminum Body, Frosted Acrylic Lens
Compact, Easy to Install
Dimmable
Low Power Consumption

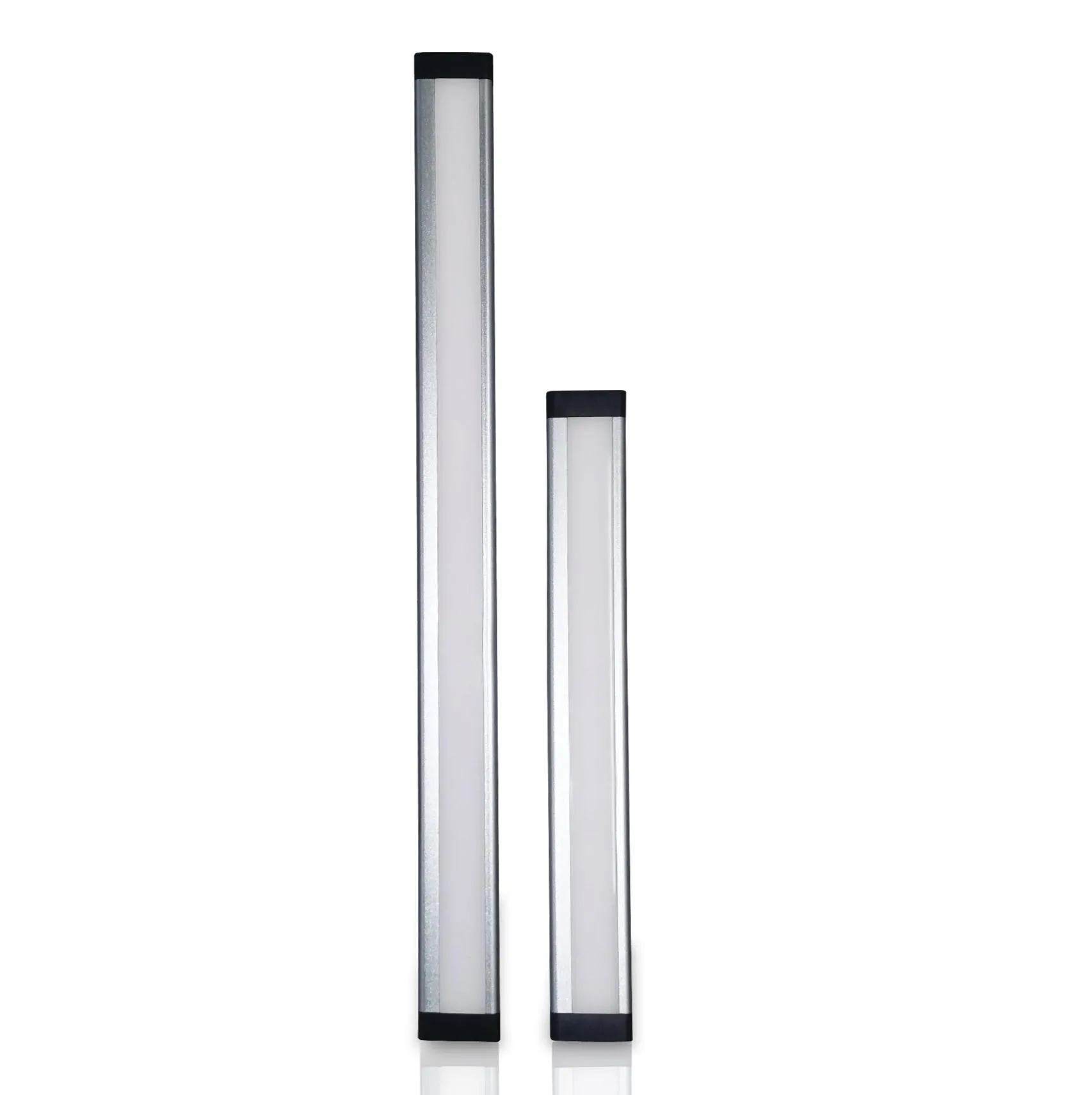

Multiple Size Options - 12 inches or 20 inches

Specifications

MPN/SKU: LUM-212LSL & LUM-220LSL

Safety Certification:

Lumen Output: 12 inch - 300 lm/ft / 20 inch - 480 lm/ft

Color Rendering Index (CRI): >90 (out of 100)

Power Consumption: 12 inch - 5 Watts / 20 inch - 8 Watts

12 Inch LED Light Bar Dimensions: 11.81"(L) x 1.46"(W) x 0.27"(H)

20 Inch LED Light Bar Dimensions: 19.68"(L) x 1.46"(W) x 0.27"(H)

Full Specifications:

Applications

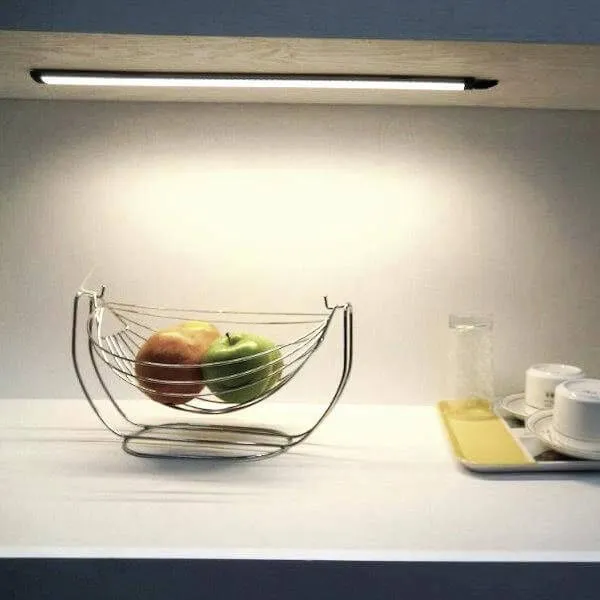

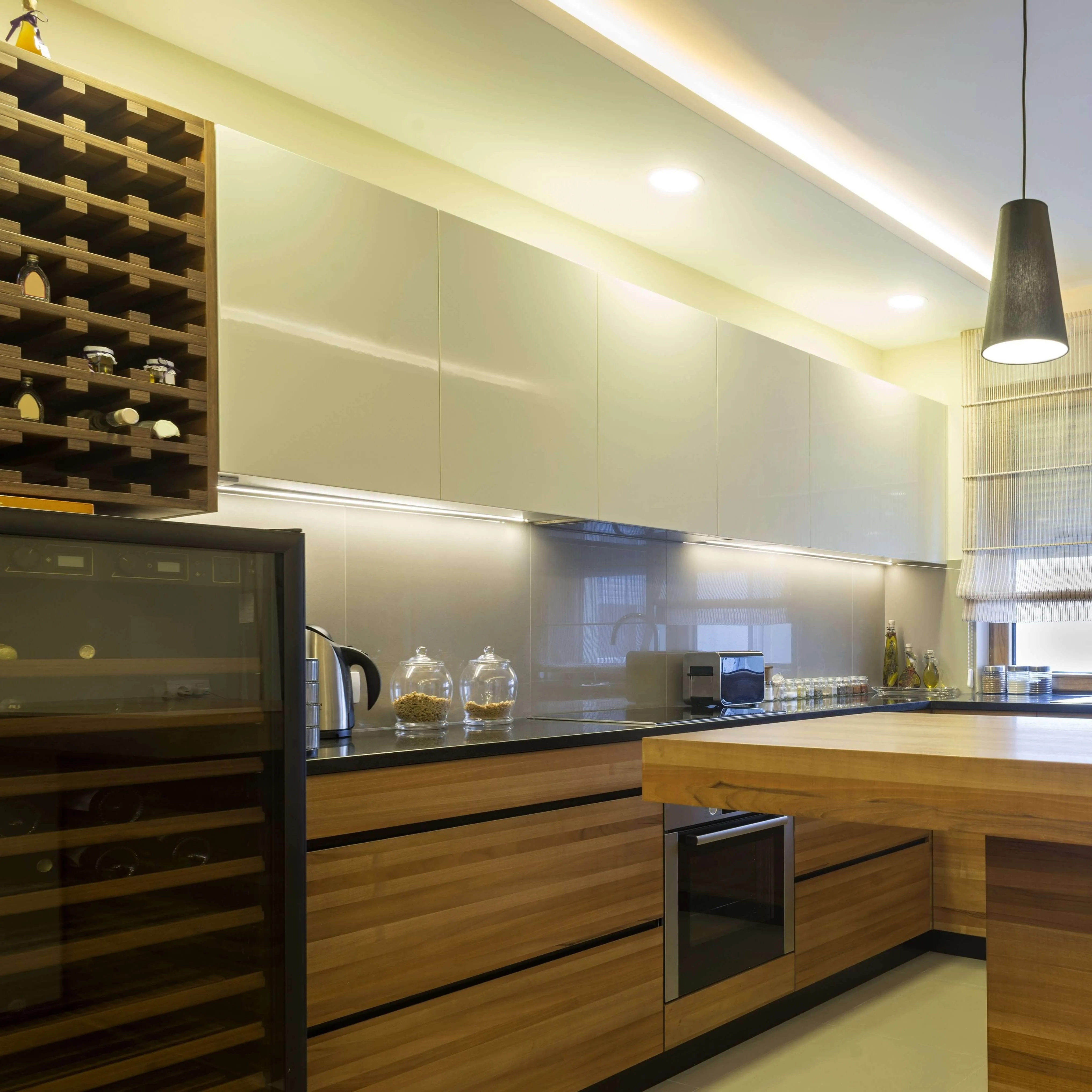

Lumilum Linear LED Light Bars are suitable for installations under cabinets, window trims, home accent lighting, jewelry displays, art gallery backlighting, backlit signage, kitchen under counter lighting, and more.
