What's better than a single LED? Lots of LEDs! But adding an LED matrix can mean a lot of wiring and space. This little kit makes the whole thing simple and tidy!

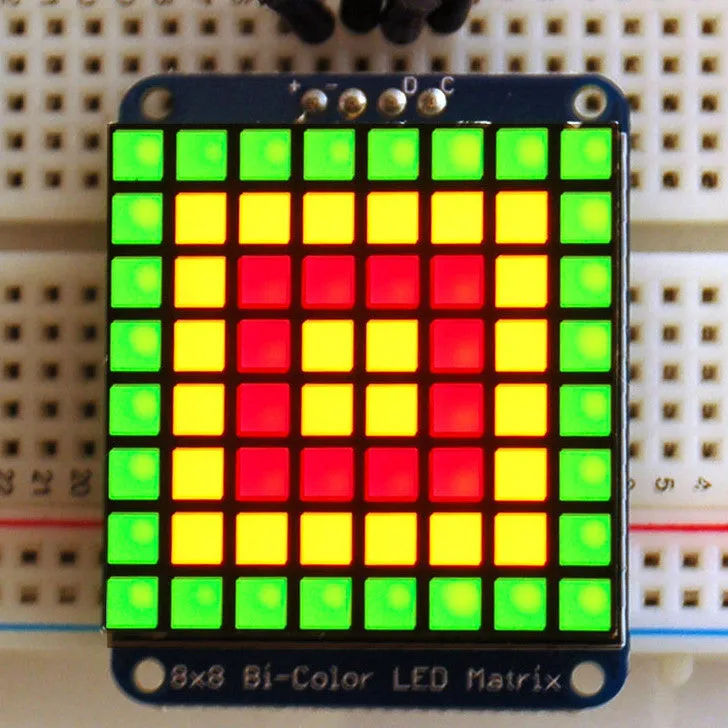

It's called a Bicolor LED, but you can have 3 colors total by turning on the red and green LEDs, which creates yellow. That's 3 colors for the price of 2!
- Driver chip has a built in clock so they can multiplex the display
- Constant current drivers for ultra-bright, consistent colour
- 1/16 step display dimming
- I2C interface
- Also available as a and a
- Backpack comes with address-selection jumpers so you can connect up to four or eight /bicolor (or a combination, such as four mini 8x8's and two 7-segments and two bicolor, etc) on a single I2C bus.

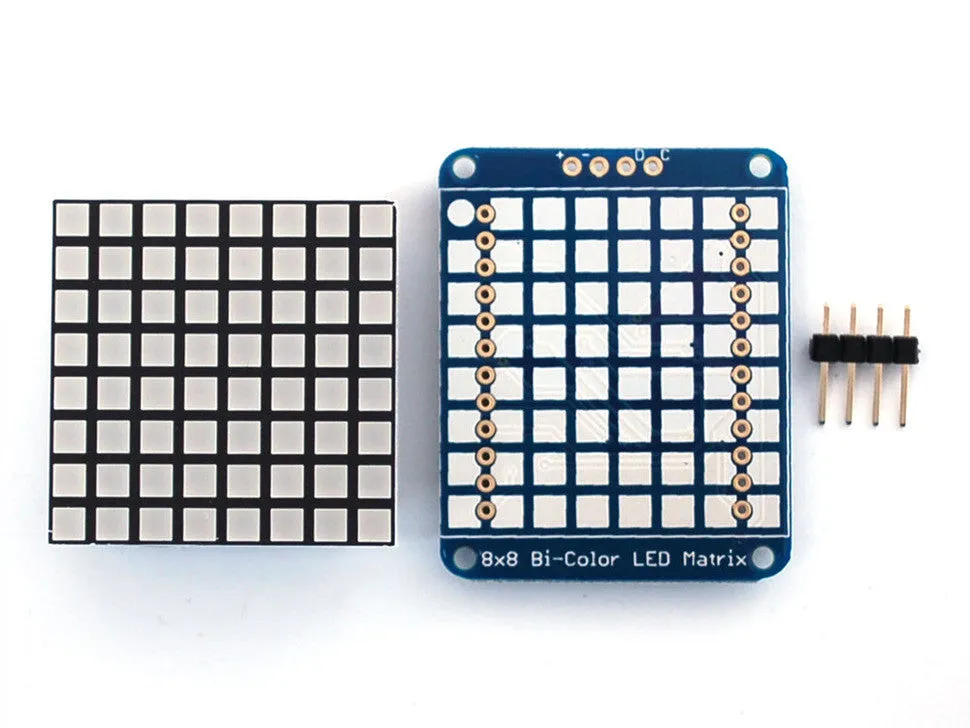

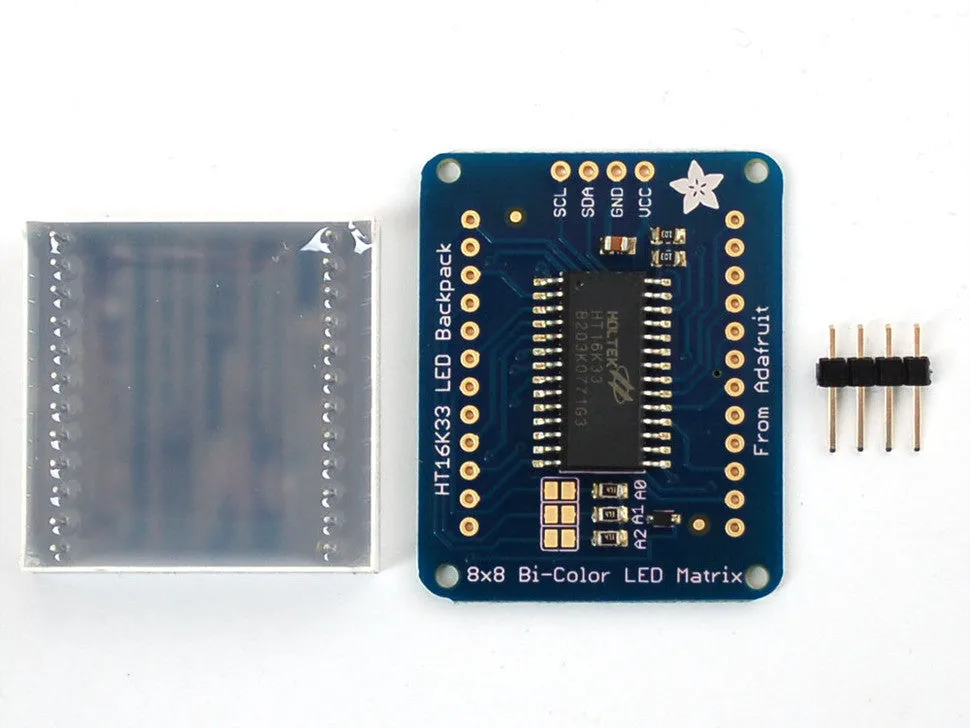

- A fully tested and assembled LED backpack
- 1.2" Bi-color 8x8 LED Matrix
- 4-pin header
A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.
Adafruit have even put together a showing you how to solder, wire and control the display and a so you can get up and running in under half an hour.
Need more details? Check out the - this board/chip uses I2C 7-bit address between 0x70-0x77, selectable with jumpers
If you've been eyeing matrix displays but hesitated because of the complexity, this is the solution you've been looking for!
