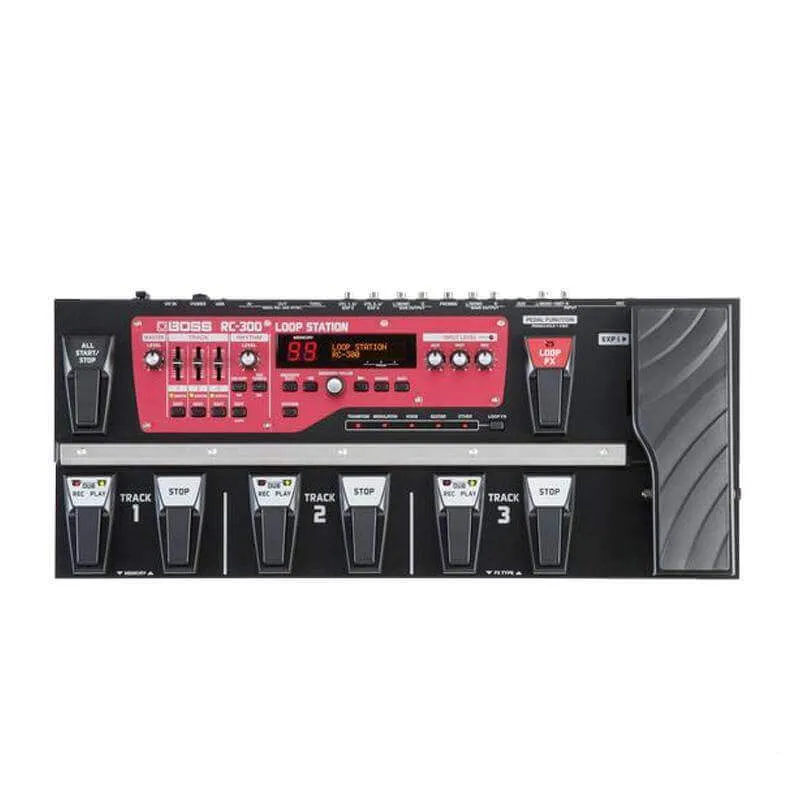

The Boss RC-300 Loop Station Effects Pedal features three synchronized stereo track with dedicated volume knobs and transport-control footswitchyes for each track. It's also equipped with pro effects, a master Expression pedal, and a deluxe, ultra-wide control panel for the ultimate in live-performance manipulation. The XLR inputs with phantom power for condenser mics allow you to loop vocals too!

Features:

• Three stereo tracks with dedicated footswitches and controls for each
• Dedicated fader per track
• Expression pedal for effects control in real time
• Up to three hours of internal recording and 99 onboard memories
• 16 onboard effects optimized for looping
• XLR Microphone input with phantom power
• USB storage; import/export WAV files
• Visit  for free loop content and software to manage your LoopStation

Effect Types:

• Transpose
• Flanger
• Phaser
• Pan
• Tremolo
• Slicer
• Bend
• Chorus
• Robot
• Female
• Male
• Gt->Bass
• Filter
• Delay
• Lo-Fi
• Distortion



Specifications

• Nominal Input Level:
• INPUT MIC: -50 dBu (variable)
• INPUT INST: -10 dBu (variable)
• INPUT AUX: -20 dBu (variable)
• Input Impedance
• INPUT MIC: 4 k ohms
• INPUT INST: 1 M ohm
• INPUT AUX: 47 k ohms
• Nominal Output Level:
  • MAIN OUTPUT: -10 dBu
  • SUB OUTPUT: -10 dBu
• Output Impedance: 2 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Recording/Playback:
• Maximum Recording Time: Approximately 3 hours (stereo)
• Maximum Phrase Memory: 99
• Number of tracks: 3
• Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

• Rhythm Types: 83
• USB Interface:
  • Hi-Speed USB (USB Mass Storage Class)
  • Hi-Speed USB (USB-AUDIO)
• Pedals:

• TRACK 1 REC/DUB/PLAY pedal
• TRACK 2 REC/DUB/PLAY pedal
• TRACK 3 REC/DUB/PLAY pedal
• TRACK 1 STOP pedal
• TRACK 2 STOP pedal
• TRACK 3 STOP pedal
• ALL START/STOP pedal
• LOOP FX pedal
• EXP 1 pedal

• Sliders:
• TRACK 1 slider
• TRACK 2 slider
• TRACK 3 slider

• Knobs:
• MASTER LEVEL knob
• RHYTHM LEVEL knob
• AUX knob
• INST knob
• MIC knob

• Displays:
  • 7 segments, 2 characters (LED)
  • 16 characters, 2 lines (backlit LCD)
• Connectors:

• INPUT MIC jack: XLR type (balanced/phantom power: DC 48 V, 10 mA)
• INPUT INST jacks (L/MONO, R): 1/4" phone type
• INPUT AUX jack: Stereo miniature phone type
• MAIN OUTPUT jacks (L/MONO, R): 1/4" phone type
• SUB OUTPUT jacks (L/MONO, R): 1/4" phone type
• PHONES jack: Stereo 1/4" phone type
• CTL 1,2 / EXP 2 jack: 1/4" TRS phone type
• CTL 3,4 / EXP 3 jack: 1/4" TRS phone type
• USB connector
• MIDI connectors (IN/OUT/THRU) (*)
• DC IN jack (DC 9 V)
(*) MIDI synchronization is possible with other RC-300 devices or when RC-300 is set to master.

• Power Supply DC 9 V (AC adaptor)
• Current Draw: Maximum 320 mA (DC 9 V)

Included Accessories:

• Owner's Manual
• AC adaptor
• USB cap
