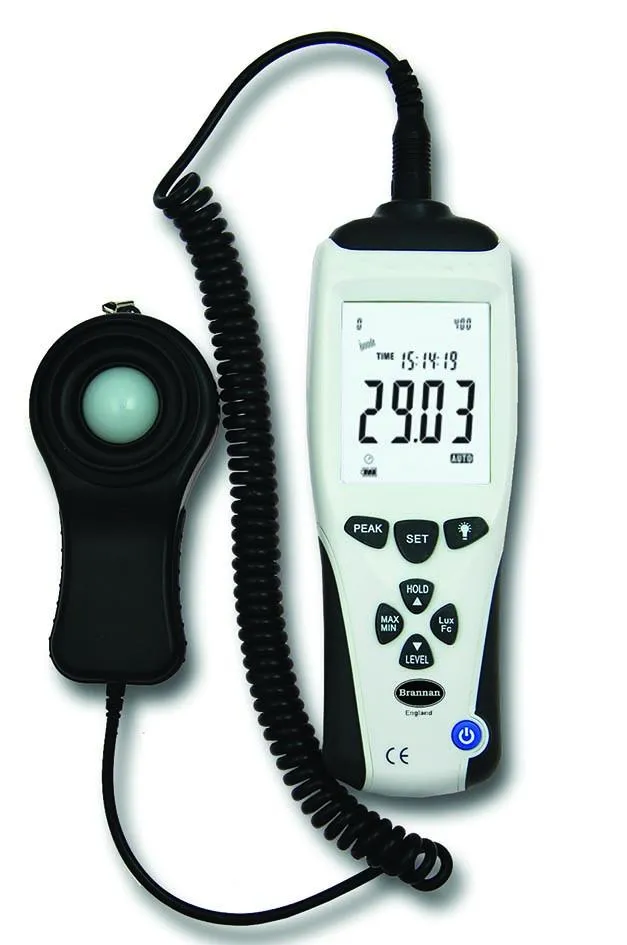

Digital Light Meter

Precision light meter used to measure illuminance in the field. It meets CIE photopic spectral response and features PEAK capture, max/min and data hold functions and overload indicator.

Product Features

• Analog segment indication
• User selectable Lux/Fc
• PEAK capture
• MAX/MIN/Data hold
• Large backlit LCD
• Overload indicator
• Low battery indicator
• Auto power off
• Supplied in heavy duty carry case

Product Specifications

• Measuring Range: 0 to 400k Lux, 0 to 40k Fc
• Accuracy: /- 3% rdg /-0.5%f.s (<10,000 Lux)
• /- 4% rdg /-10dgts (>10,000 Lux)
• Spectral Response: CIE photopic (CIE human eye response curve)
• Spectral Accuracy: CIE Vl function (f1‚Äô<6%, f2‚Äô<2%)
• Sampling Rate: 2 per second
• Over Range Indication: LCD displays ‚Äú-OL-‚Äù or ‚Äú-LO-‚Äù
• Photo Detector Lead Length: approx 2.5m
• Operating Conditions: -20 to 60¬∞C < 90%RH (non-condensing)
• Storage Conditions: -30 to 70¬∞C < 75%RH
• Battery: 1 x 9V (included)
• CE & RoHS/WEEE: Compliant
• LCD Dimensions: 55 x 45mm
