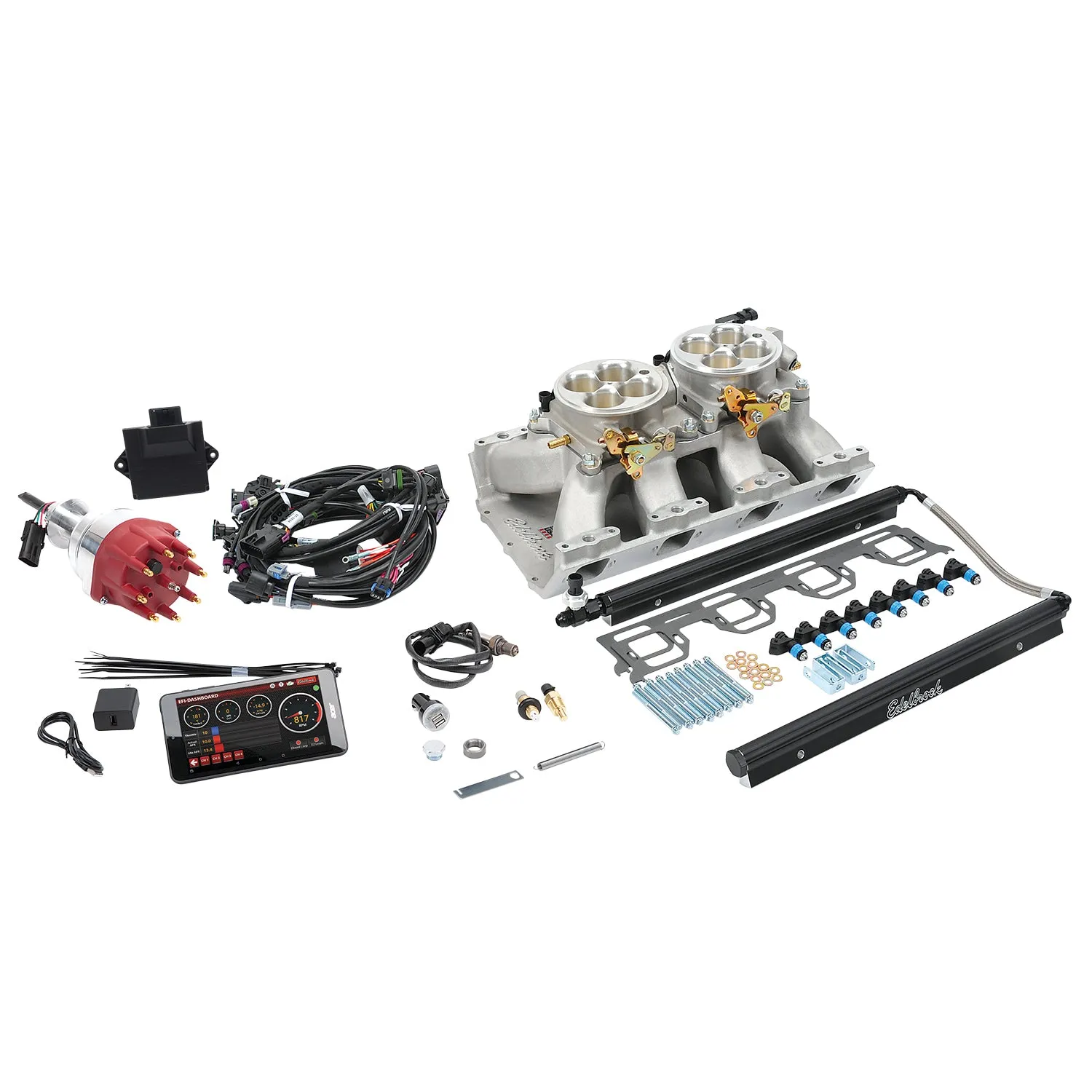

Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Mopar Gen II 426-572 HEMI engines operating in the 2,500-6,500 RPM range. This EFI incorporates a single-plane Air-Gap design manifold with dual square-bore 4150-style throttle bodies that bolts directly onto vehicles with a shaker hood. The Dual-Quad HEMI EFI manifold is compatible with factory-style cylinder heads but optimized for use with Victor Jr. HEMI heads. Manifold comes preassembled and ready to run with throttle bodies, 60 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 825 horsepower at 43 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet included for a streamlined installation. Key advancements of Pro-Flo 4 EFI are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI does not require laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration to get the maximum performance out of your engine by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.

Specifications:

Bore Diameter	1.75
Description_ABR	ProFlo4 EFI
Description_DEF	Fuel Injection System
Description_DES	FUEL INJECTION
Description_EXT	Edelbrock Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Chrysler Gen II 426-572 HEMI engines operating in the 2,500-6,500 RPM range.
Description_EXT	Edelbrock Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Chrysler Gen II 426-572 HEMI engines operating in the 2;500-6;500 RPM range.
Description_FAB	Complete Engineered System For The Ultimate In Performance
Description_FAB	New ECU Preloaded w/80 Dyno-Tuned Calibrations
Description_FAB	Self Learning EFI System
Description_INV	Pro-Flo 4 EFI #35670 for Gen II HEMI
Description_KEY	Pro-Flo 4 EFI; Electronic Fuel Injection; Sequential Port EFI; Direct-port EFI; Edelbrock; Edelbrock EFI; Chrysler Hemi; Mopar Hemi; 426 Hemi; Elephant engine; TBI; Throttle Body Injection; FiTech; Holley; Sniper TBI; Fast EFI; MSD EFI; Atomic; Quick Fuel
Description_LAB	Pro-Flo 4 EFI Traditional 4150-Style Kit #35670 For Chrysler HEMI Gen II 426-572
Description_MKT	Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Mopar Gen II 426-572 HEMI engines operating in the 2,500-6,500 RPM range. This EFI incorporates a single-plane Air-Gap design manifold with dual square-bore 4150-style throttle bodies that bolts directly onto vehicles with a shaker hood. The Dual-Quad HEMI EFI manifold is compatible with factory-style cylinder heads but optimized for use with Victor Jr. HEMI heads. Manifold comes preassembled and ready to run with throttle bodies, 60 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 825 horsepower at 43 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet included for a streamlined installation. Key advancements of Pro-Flo 4 EFI are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI does not require laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration to get the maximum performance out of your engine by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 7in.}
Description_SLA	Our new Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Mopar Gen II 426-572 HEMI engines operating in the 2,500-6,500 RPM range. This EFI incorporates a single-plane Air-Gap manifold with dual square-bore 4150-style throttle bodies that bolts directly onto vehicles with a shaker hood. The Dual-Quad HEMI EFI manifold is compatible with factory-style cylinder heads but optimized for use with our Victor Jr. HEMI heads. Manifold comes preassembled and ready to run with throttle bodies, 60 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 825 horsepower at 43 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet included for a streamlined installation. Key advancements of Pro-Flo 4 EFI are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI does not require laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the calibration to get the maximum performance out of your engine by maintaining a specified target air-fuel ratio as you drive. Our E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Description_SLA	Our new Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with1964-71 Mopar Gen II 426-572 HEMI engines operating in the 2;500-6;500 RPM range. This EFI incorporates a single-plane Air-Gap manifold with dual square-bore 4150-style throttle bodies that bolts directly onto vehicles with a shaker hood. The Dual-Quad HEMI EFI manifold is compatible with factory-style cylinder heads but optimized for use with our Victor Jr. HEMI heads. Manifold comes preassembled and ready to run with throttle bodies; 60 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 825 horsepower at 43 PSI with all supporting sensors; ECU; wire harnesses and 7-inch Android tablet included for a streamlined installation. Key advancements of Pro-Flo 4 EFI are its Self-Calibrating Fuel Map Technology; Wide-Band O2 Closed Loop Mixture Control; and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI does not require laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the calibration to get the maximum performance out of your engine by maintaining a specified target air-fuel ratio as you drive. Our E-Tuner provides the ability to fine-tune air-fuel ratios; ignition curve; idle speed; acceleration fuel; fans; rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Description_TRA	Manifold Height: 5.10 in.
Distributor Cap Included	Yes
finish	Satin
Flange Type	4150
Fuel Injector Type	60 lb/hr
Fuel Pressure Port	1/8-27 NPT
Gasket Or Seal Included	Yes
height	10.25
length	27.75
LTL	N
Manifold Height	5.10
Maximum Horsepower	825
Quantity	Kit
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type	Traditional 4150-Style Kit
Throttle Body Type	4 Barrel
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	47.0
width	24.0
Wire Harness Included	Yes
Wiring Harness Included	Yes
