Features:
Designed with the Higher Capacity
Precise and Automatic Control of Room Temperature in Two-Pipe Systems by Modulating the Flow of Hot Water or Steam Through High Capacity Heating Unit
Normally Open without Control Mounted
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: V110E1012

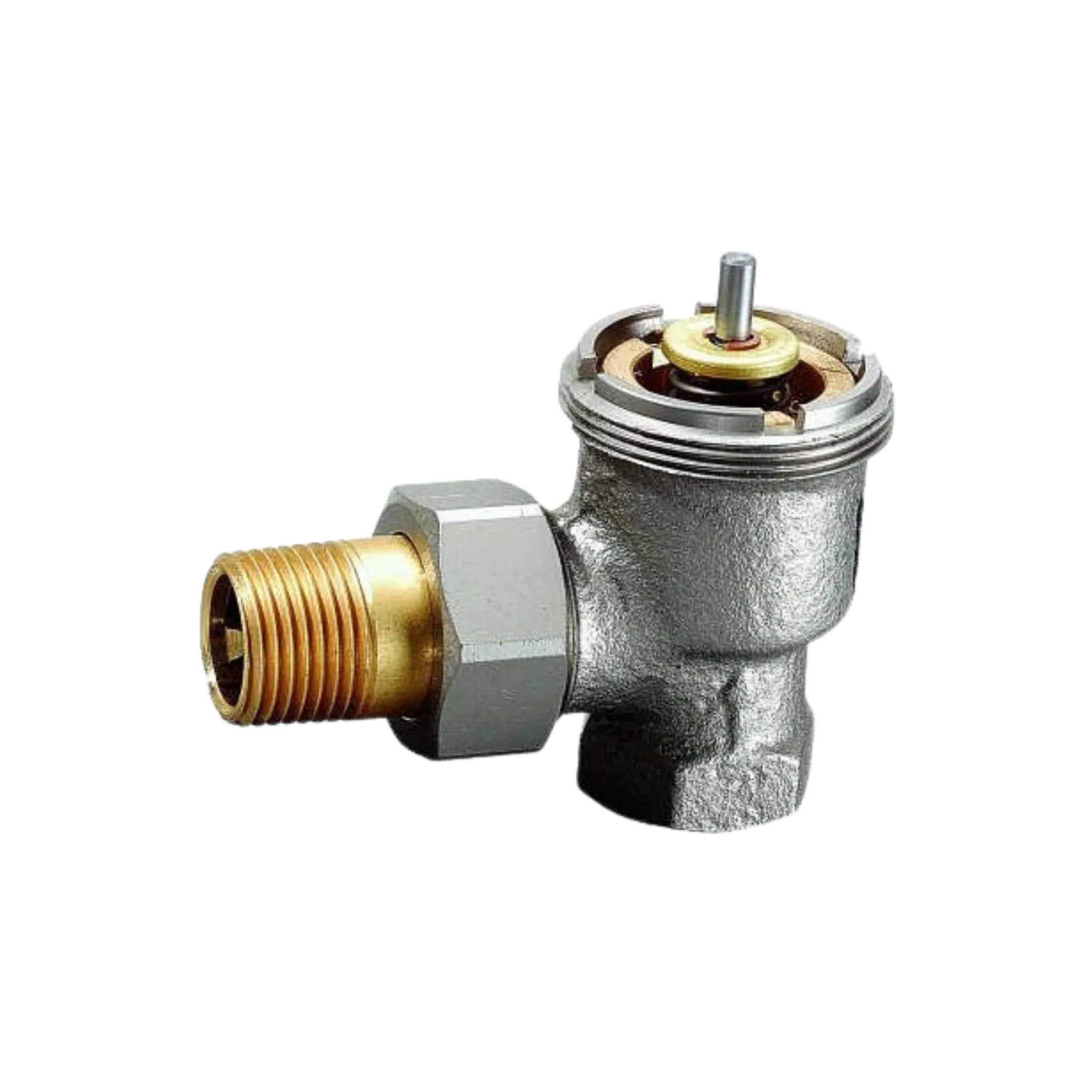

Product Type: Radiator Valve
Body Configuration: Angle
Nominal Size: 3/4"
End Connection: Male Threaded x Female Threaded
Body Material: Nickel Plated Bronze
Seat Material: EPDM
Temperature Rating: 248 Degrees F
Pressure Rating: 150 PSI (Hot Water), 15 PSI (Steam)
Differential Pressure Rating: 17 PSI
Capacity: 162000 BTU/Hour
Dimensions: 3.9" x 3.7" x 1.8"
Weight: 1.03 lb.
Used For: Valve Seat Disc, Cartridge
