Product Details
＋

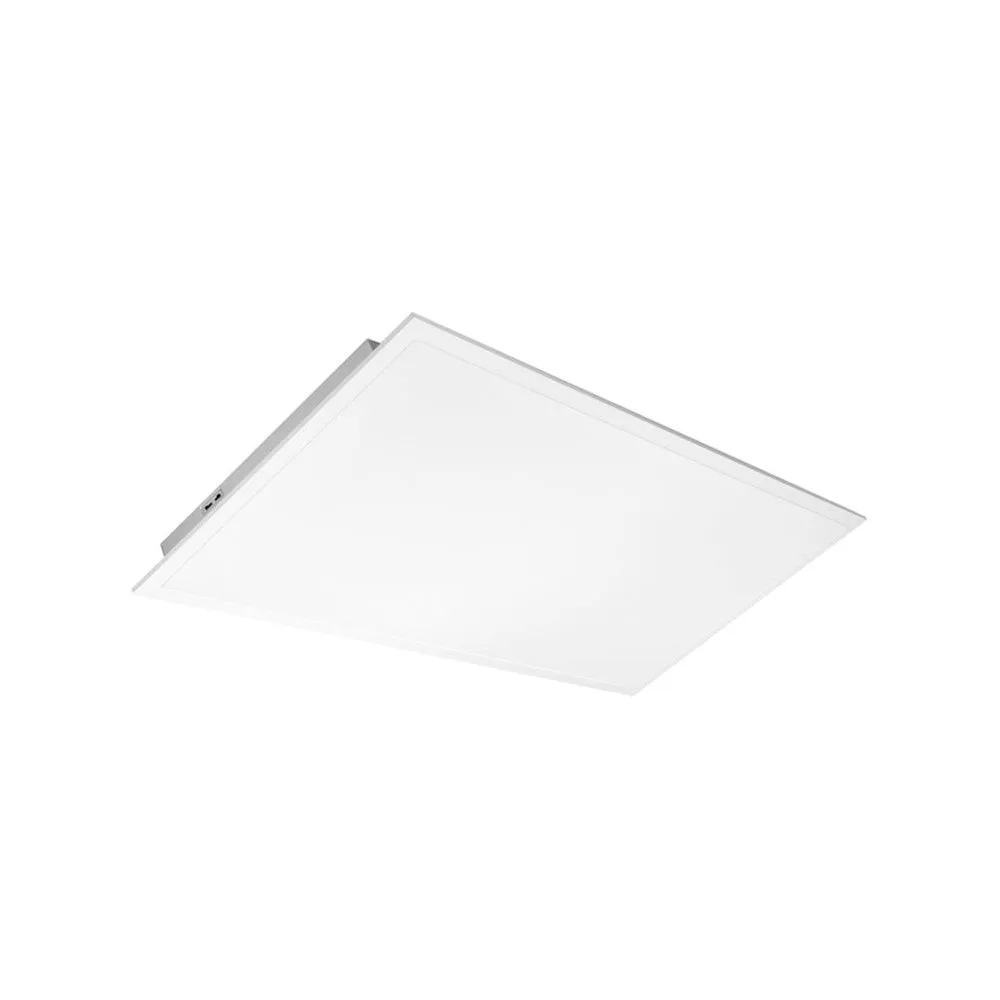

Step 1 Dezigns LED 2x4 backlit LED panel with Multi-Watt selection and Multi-CCT selection. The wattage and color temperature can be changed via dip switches. It is ideal for any office, retail, healthcare, or educational environment. It replaces Fluorescent Troffer with integrated dimmable capability.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.
Key Features
- Instant On LED
- Multi-Watt Adjustable Switch
- Multi CCT Color Adjustable
- Even & Smooth Lighting Distributing Light Lens
- Replaces 2x4 Fluorescent Troffers

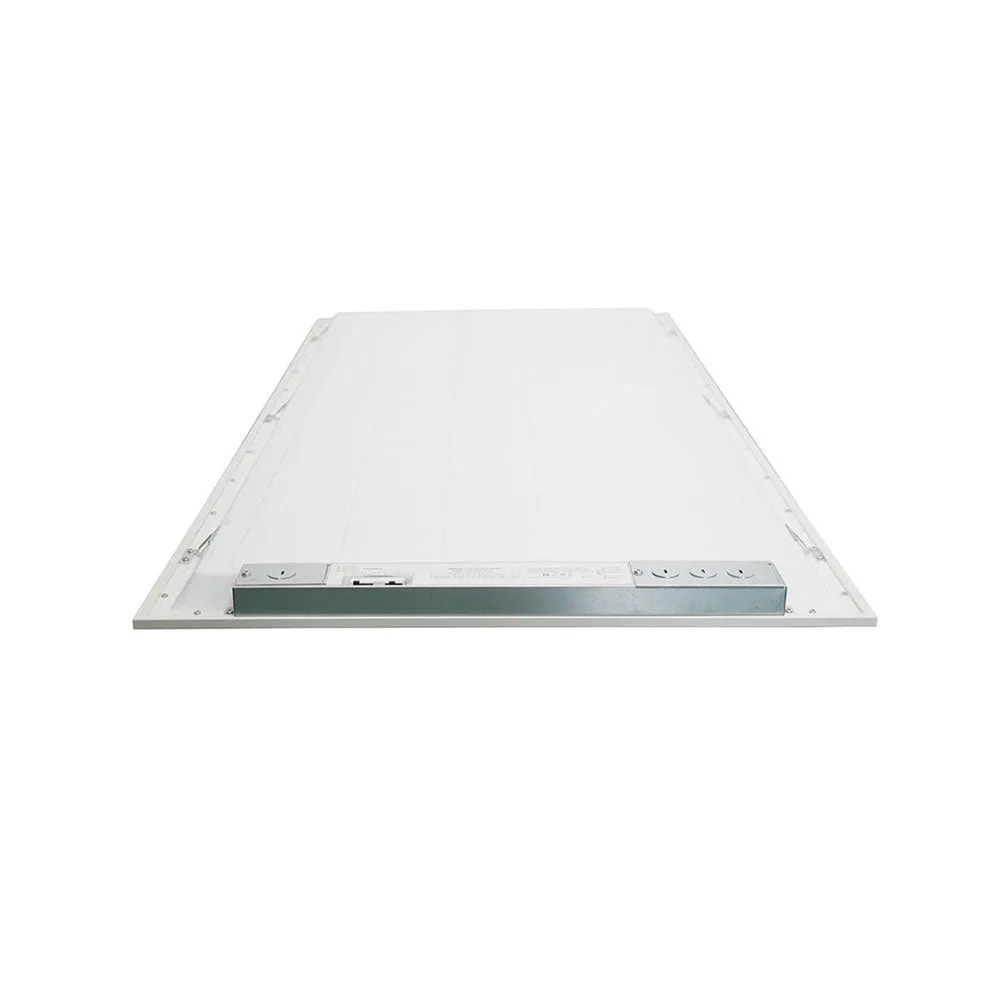

- A junction Box Included for Easy Connections
- 10% 0-10V Dimming
- Long lifespan 50000 hours
- White Frame Edge
- Surface Mount Frame Kit Available, sold separately, contact us to order
Applications
- Lighting for Tradeshows, Exhibition, and Retail Displays
- Retail Stores, Restaurants, Clubs, Lounges, Meeting Room
- Corridor, Hallway, Living Room
- Supermarket lighting
- General office lighting
- Warehouse lighting
- Custom DIY projects
Specifications
| Power (Watts) | 35/40/45/50 watts (60 Hz) |
|---|---|
| Input Voltage | 120-277V AC |
| Brightness |
4375/5000/5625/6250Lumen |
| LED CCT | Selectable 3000/3500/4000/5000K |
| Dimmable |
Yes 10% 0-10V |
| IP Rating | IP20 |
| Environment | Dry Location |
| LED Beam Angle | 114° |

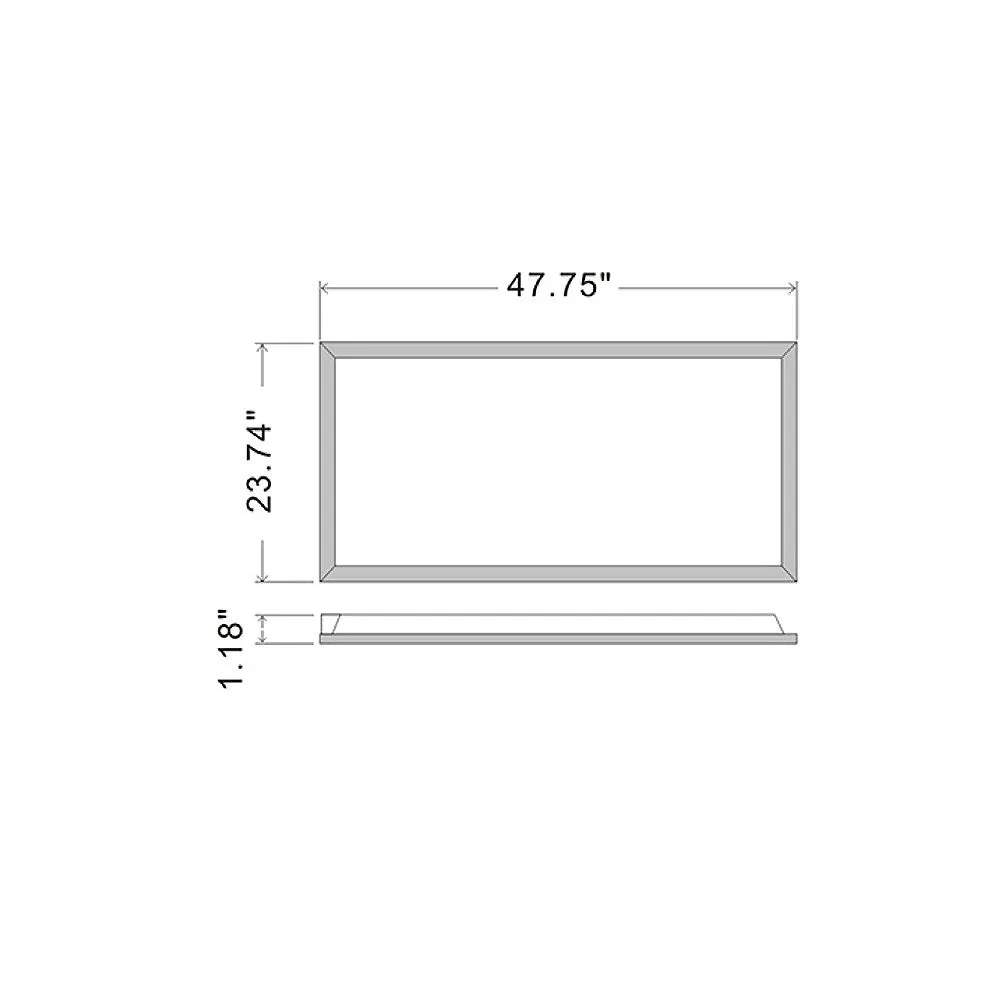

| Fixture Length |
23.74 in |
| Fixture Width |
47.75 in |
| Fixture Height |
1.18 in |
| Mounting |
T-Bar Drop Ceiling, or Surface Mount Frame Kit (Sold Separately) |
| Finish |
Acrylic Diffuser in White Finish Frame |
| Manufacturer | Elumalight |
| Rating | UL, DLC |
| Avg. Lifetime | ± 30,000 - 50,000 hours |
| Warranty | 5 years limited |
