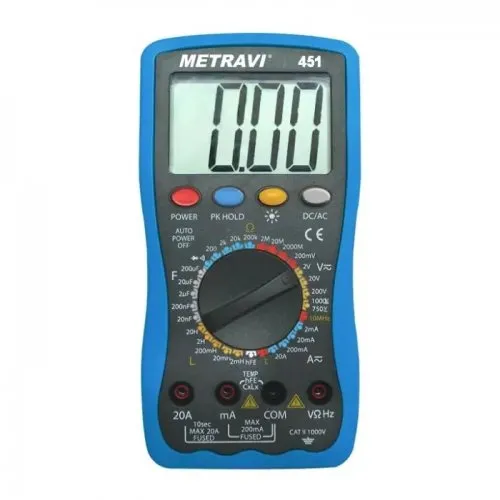

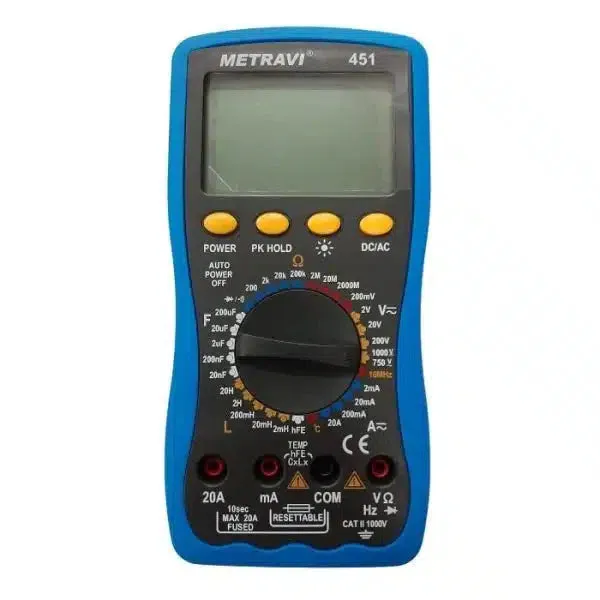

The Metravi 451 Digital LCR Meter with Multimeter is a powerful and versatile instrument, merging the advanced functionalities of an LCR meter with the utility of a digital multimeter. Designed to measure inductance (L), capacitance (C), and resistance (R) with precision, it also offers standard multimeter features like DC/AC voltage and current measurement. With a user-centric design, it features a backlit 3½-digit LCD display, peak hold functionality, and an auto power-off mechanism, making it suitable for professionals and electronics enthusiasts alike. Built to meet IEC1010 safety standards, it ensures reliable performance and user safety.

Key Features

• Peak Hold Facility: Captures and displays peak values for accurate measurement.
• Backlit LCD Display: 3½-digit display with 1999 counts for enhanced visibility.
• Low Battery and Overload Indication: Alerts the user for safe and reliable operation.
• Auto Power Off: Automatically powers off to save battery life.
• IEC1010 Compliance: Adheres to international safety standards for secure usage.
• Additional Functions: Includes diode testing, transistor testing, and audible continuity checks.

Specifications

• DC Voltage:
  • Ranges: 0-200mV, 2V, 20V, 200V, 1000V
  • Accuracy: ±0.5%
• AC Voltage:
  • Ranges: 0-200mV, 2V, 20V, 200V, 750V
  • Accuracy: ±0.8%
• DC Current:
  • Ranges: 0-2mA, 20mA, 200mA, 20A
  • Accuracy: ±0.8%
• AC Current:
  • Ranges: 0-2mA, 20mA, 200mA, 20A
  • Accuracy: ±1.0%
• Resistance:
  • Ranges: 0-200Ω to 2000MΩ
  • Accuracy: ±0.8%
• Capacitance:
  • Ranges: 0-20nF to 200µF
  • Accuracy: ±2.5%
• Inductance:
  • Ranges: 0-2mH to 20H
  • Accuracy: ±2.5%
• Frequency:
  • Ranges: 0-2kHz to 10MHz
  • Accuracy: ±1.0%
• Temperature:
  • Range: -40°C to 1000°C
  • Accuracy: ±1.0%

Box Includes

• Metravi 451 Digital LCR Meter
• Test Leads
• User Manual
• 9V Battery

Applications

• Electronics Testing: For circuit troubleshooting and development.
• Component Analysis: Accurate measurement of inductors, capacitors, and resistors.
• Field Maintenance: Reliable for on-site testing of electrical equipment.
• Educational Labs: Ideal for training purposes in academic environments.
