Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±0.1% % |
| Application | Industrial |
| Approvals | CE Marked, EN 61326-1 Immunity to Industrial Locations, Emission CISPR 11 Class B, IEC⁄EN 61010-1, IP20 (Rear of Unit), IP65 (Face Only), RoHS Compliant, Type 4X (Face Only), UL Recognized Component: File E179259 |
| Bezel | NEMA 4X⁄IP65 Sealed Front Panel |
| Connection Type | Screw-Clamp Terminals |
| Counter Type | Miniature Counter |
| Cut Out, Panel | 2.68×1.3 " |
| Depth | 1.961" (49.8mm) |
| Dimensions | 2.95" L x 2.11" W x 1.54" H |
| Dimensions, Cutout, Inches | 68 x 33 mm |
| Display Digit Height | 15.2 mm |
| Display Range | -1999 to 1999 |
| Display Type | LCD |
| Function | Voltmeter |
| Input Voltage | 75 VDC |
| IP Rating | IP65, Front Panel |
| Material, Casing | Plastic |
| Maximum Operating Temperature | 60 °C |
| Measurement Range | ±199.9 mVDC to ±199.9 VDC |
| Measuring Range | ±199.9 mV dc to ±199.9 V dc |
| Meter Type | Voltmeter |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Panel Mount |
| NEMA Rating | NEMA 4X |
| Number of Digits | 6 Digits |
| Operating Temperature, Maximum | 60 °C |
| Operating Temperature, Minimum | 0 °C |
| Primary Type | Electronic |
| Product Header | Miniature DC Voltmeter w/Red Backlighting |
| Response Time | 1.5 Sec. |
| Series | |
| Special Features | programmable |
| Standards | CE Marked, cUL Recognized |
| Supply Voltage | 85 to 250 VAC |
| Temperature Range | 0 to 60 °C |
| Temperature, Opening, Maximum | 60 °C |
| Terminal Type | Screw-Clamp |
| Type | Digital |
Overview

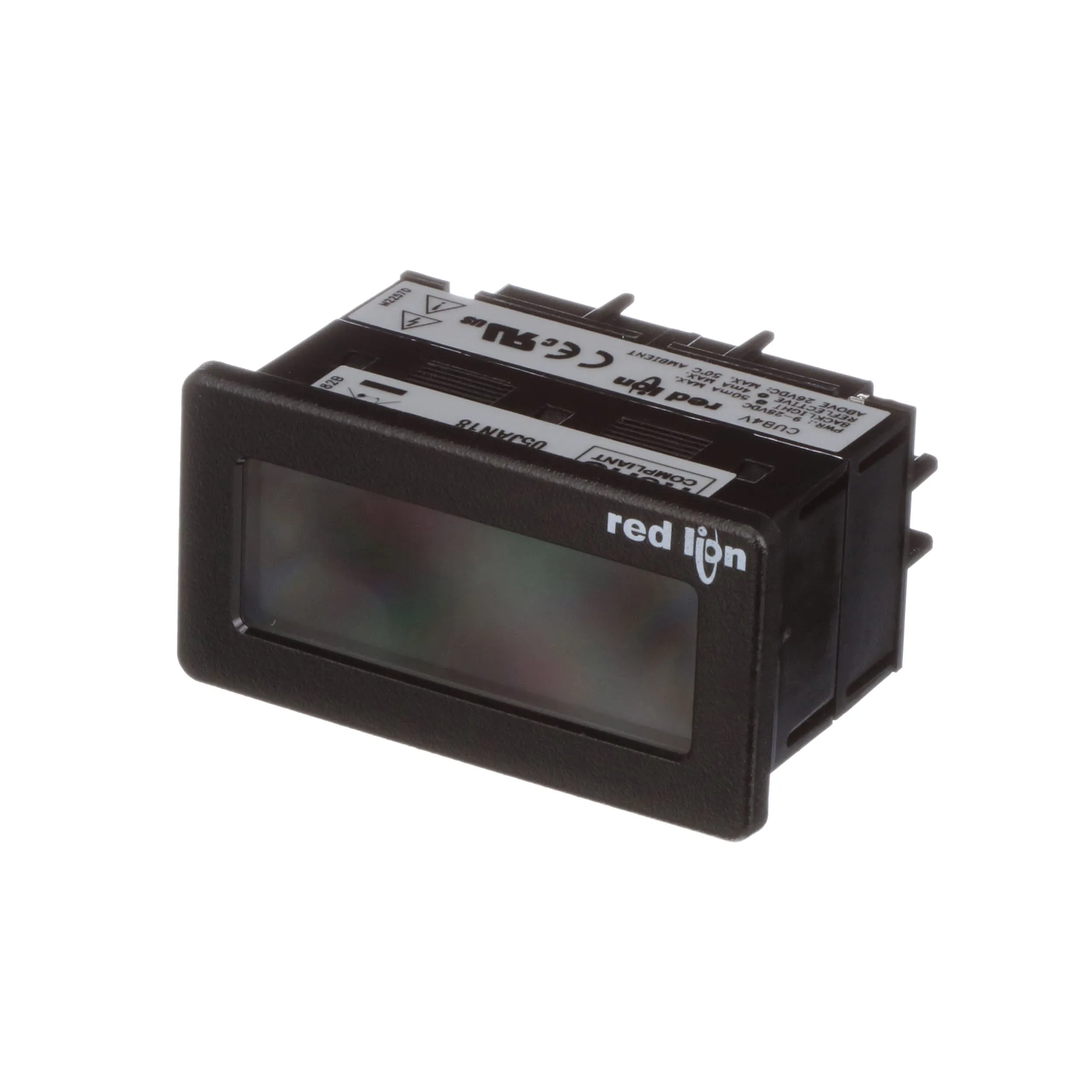

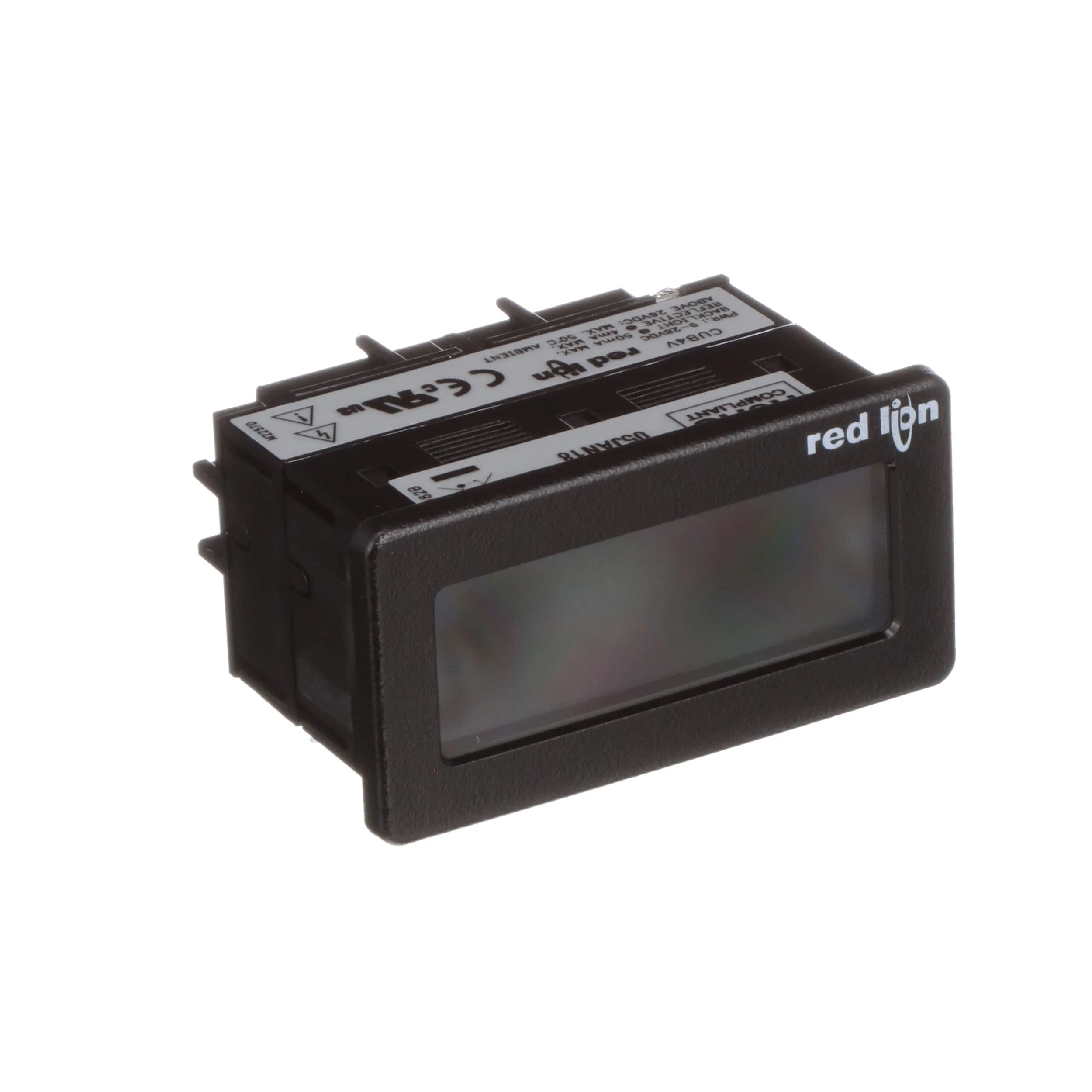

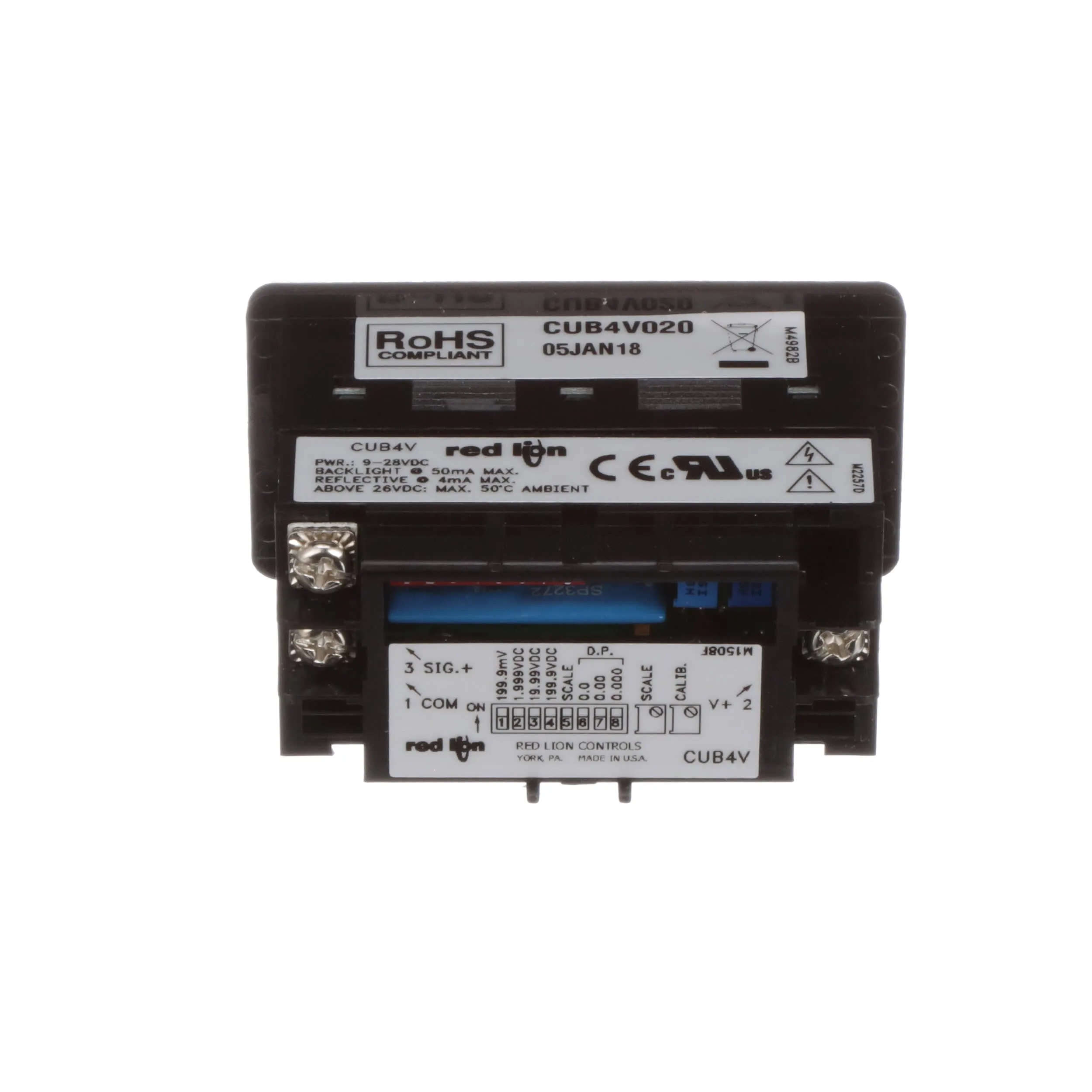

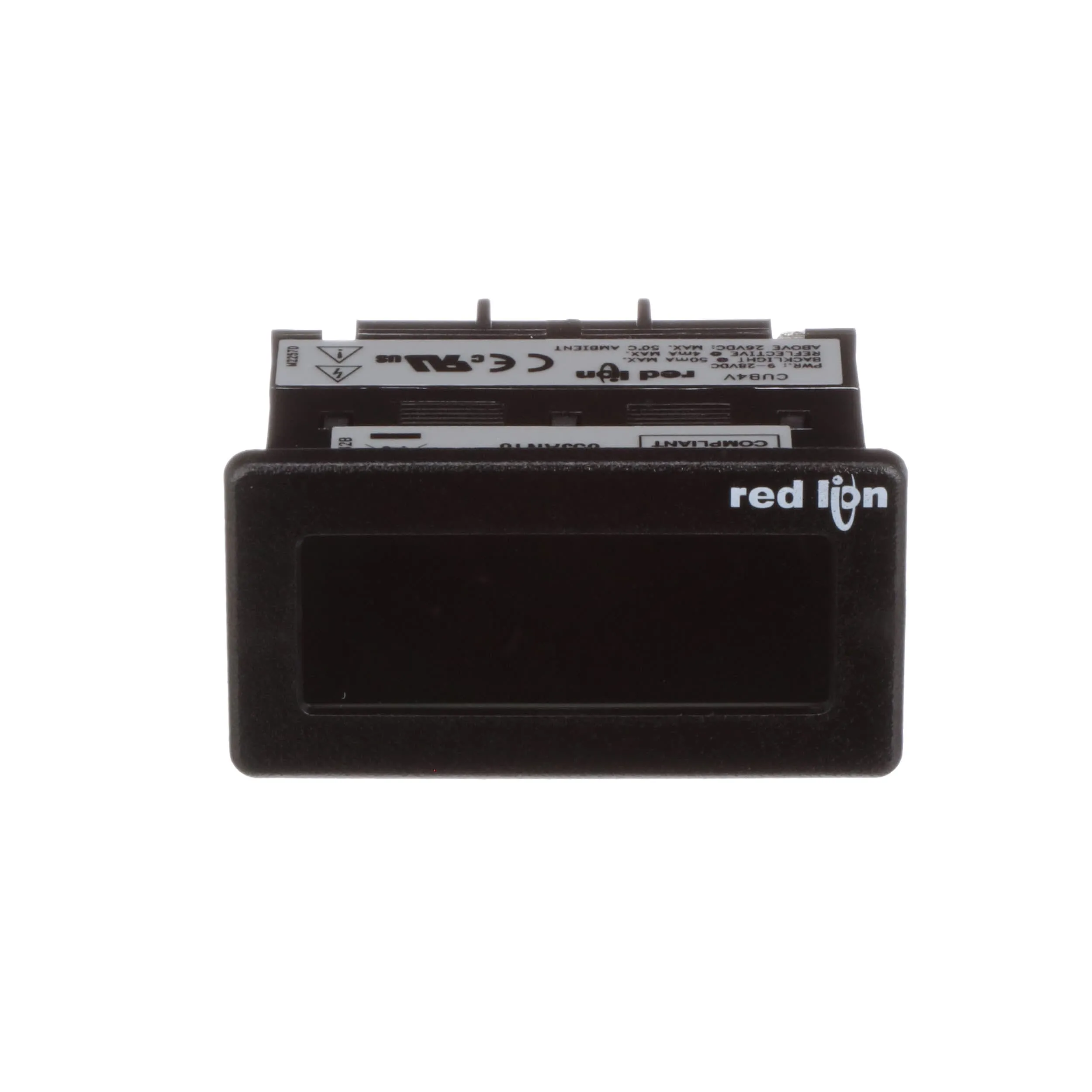

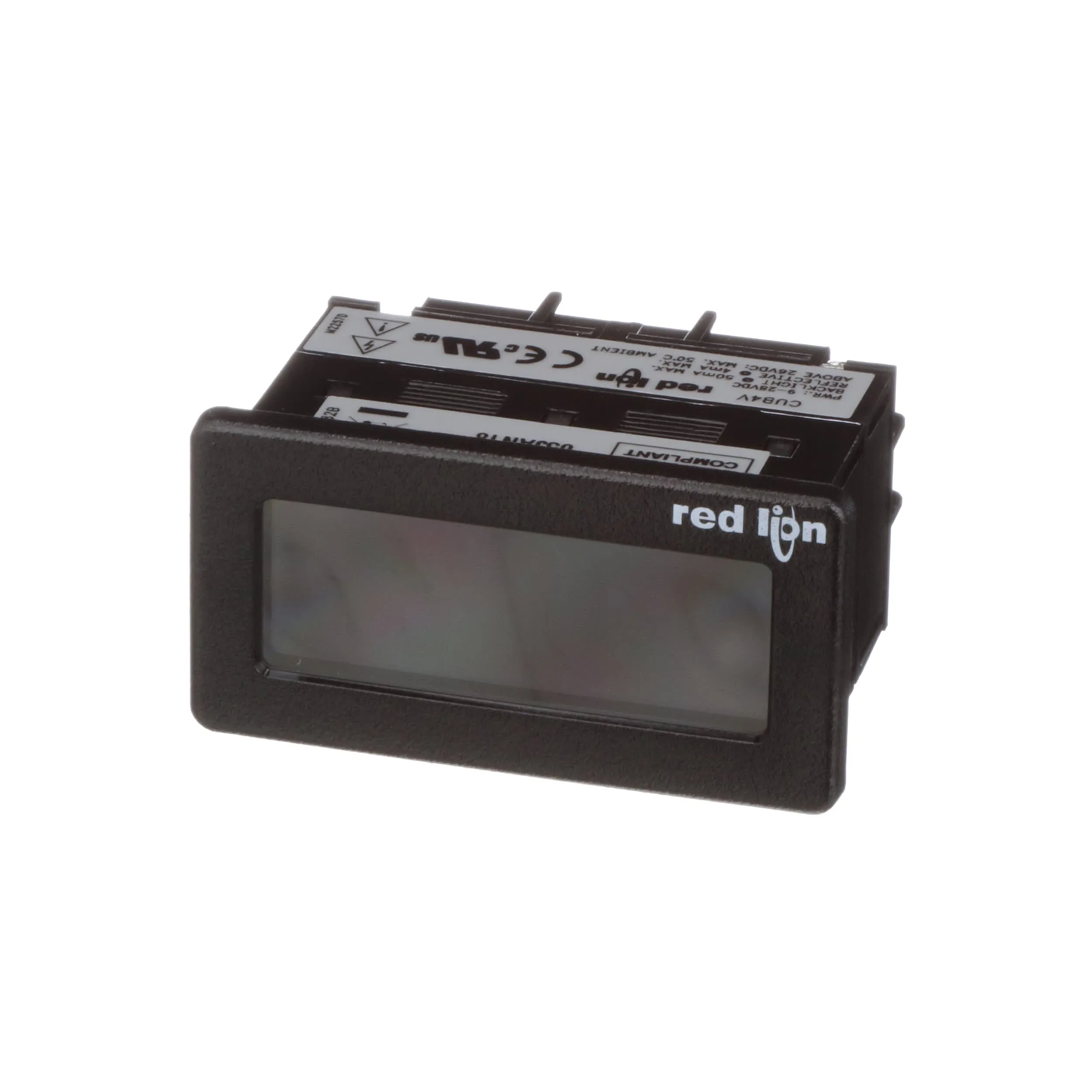

Red Lion CUB4 Series — CUB4V020 Voltmeter with Red Backlit Display:
The CUB4 offers a large display in a miniature package with a choice of three displays; reflective, red backlight or green backlight. The backlight versions require power from an external 9–28 VDC supply. The optional power supply (MLPS) is designed to be attached directly to the rear of the CUB4 and is powered from an 85–250 VAC source. The CUB4 series has a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with the silicone rubber reset button meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments, when properly installed.
