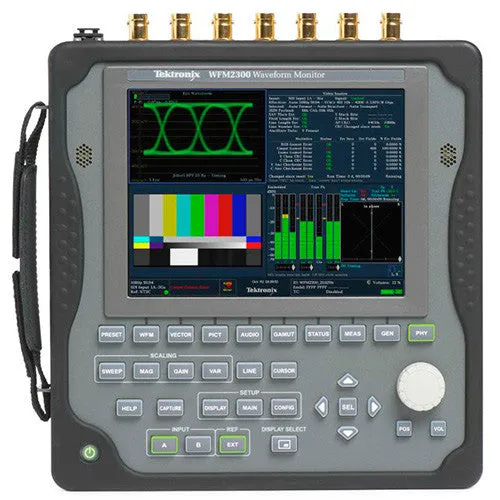

The Tektronix WFM2300 Portable Video Waveform Monitor provides an ideal solution for video installation and maintenance applications with an integrated high-brightness, low-power consumption LED backlit display in a convenient portable form factor. The versatile Tektronix WFM-2300 can operate with an internal battery and DC input through an AC-DC converter unit.

Features:

• Portable Instrument that is Ideal for Field Production Setup and Troubleshooting
• Coax SDI Eye pattern measurement including eye amplitude, rise/fall time and overshoot measurements as well as Tektronix jitter waveform display
• Operates with Internal, Rechargeable, and Replaceable Battery Unit; External Recharger Kit and a Battery Unit for Replacement is available as an option
• Optical SDI Input and Output compliant to SMPTE297 (Option SFP)
• Coaxial Cable simulation / margin test loop for secure system installation
• One SDI Input and one MULTI Input with Multiformat, Multistandard Support The MULTI input can be configured as SDI, AES or LTC input
• Dual Link SDI format support is a standard feature
• Upgradeable to include 3G-SDI (Level A and Level B) format support (Option 3G)
• 3G/HD/SD Color Bar and Pathological Signal Generator with Genlockand Moving Picture / Circle for Troubleshooting Signal Paths and Equipment (Note: Option 3G is required for 3G-SDI signal generation) through Coax cable and Optical interface (Option SFP)
• Comprehensive Audio Monitoring tool ?Up to 16 channel Embedded AES/EBU Audio
• Multichannel Surround Sound 1 Display and Flexible Lissajous Display
• Audio Loudness meter (Option LOUD)
• Dolby metadata decode and peak level metering (Option DBE)
• AES Audio Test Tone Generator for Embedded and AES Output
• Ability to Display Waveform of External Reference Signal and LTCSignal for Quick Diagnosis of the Potential Issues in Sync and Time Distribution System
• Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring
• Comprehensive Data Monitoring helps to Quickly Resolve Difficult Content Quality and Reliability Issues (Option DATA) ?Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring
• Detect and decode ANC data including AFD, WSS, Video Index,TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC
• ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support
• ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems
• Variety of Monitoring Displays ?Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy
• Waveform display of external reference (Black Burst or Tri-Level Sync)
• Extensive alarms, status reporting, and error logging for 10,000 events simplifies error correction tasks
• Voltage and Timing Cursor for precise measurement
• User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks
• Unmatched Display Versatility ?Flexible Quad Tile display tailored to various application needs to increase productivity
• Full Screen mode that maximizes display size for precise adjustments
• Thumbnail Picture for content verification
• Unmatched Usability ?32 presets for quick recall of instrument settings
• USB port enables easy transfer of presets, screenshots, and error log
• Internal speaker and headphone port for easy monitoring of audio channels
• Intuitive menu structure and context-sensitive help
• High-brightness display with crisp, high-resolution LED backlight, ideal for indoor and outdoor usage
• SNMP capability facilitates centralized monitoring and control
• Super lightweight and low power consumption design for portable, battery-powered applications

Includes:

• 1 - Installation and Safety Instructions (071-3205-xx)
• 1 - WFM200BA Li-Ion Rechargeable Battery Pack
• 1 - AC Power Adapter (119-7910-xx)
• 1 - Power Plug
