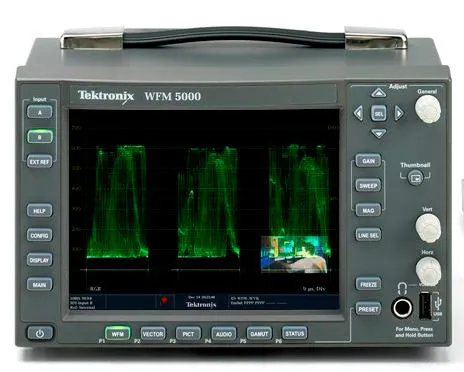

Tektronix WFM5000 SD/HD-SDI Waveform Monitor

HD/SD-SDI Multi-Standard, Multi-Format Portable Waveform Monitor

• WFM5000 - HD/SD - SDI Portable Waveform Monitor
• Convenient, 3 RU, Half-rack, Short-depth Instrument, Ideal for Space-constrained Environments
• AC and DC Power Options
• Patented Gamut Displays Facilitate Compliance Verification
• The Sharpest CRT-like Waveform Trace Quality
• Error Log for 10,000 Events Simplifies Error Correction Tasks
• Fully Digital Processing for Accurate, Repeatable, Drift-free Operation
• Ethernet Port Allows for Easy Download of Screen Shots and Error Log
• Freeze Mode for Trace and Picture Displays
• Equipped Standard with Monitoring Capacity for 16 Channels of Embedded Audio (up to 8 Simultaneously) and 1 AES Audio Input
• Front Panel Headphone Port for Easy Monitoring of Audio Channels
• Audio Bars and Lissajous Displays for Verification of Audio on the Same Instrument
• 32 User-configurable Presets for Quick Recall of Commonly Used Configurations.
• User-definable Safe Area Graticules Facilitate Editing Tasks
• High-brightness Display Allows for Indoor and Outdoor Usage
• Picture Thumbnail with Line-select Marker
• Intuitive User Interface, Backlit Buttons, and Online Help
• Front Panel USB Port for Easy Transfer of Instrument Presets
• Supports HD-SDI (SMPTE 292M) and SD-SDI (ITU-R BT.601) monitoring applications. It provides HD/SD format autodetect.

Applications

• Confidence Monitoring Of SDI Video and
• Uncompressed Digital Audio
• Compliance Checking in Distribution and Broadcast
• Content QA in Production and Post-Production
• Portable Monitoring on Camera and Field Production
