Product Details
+

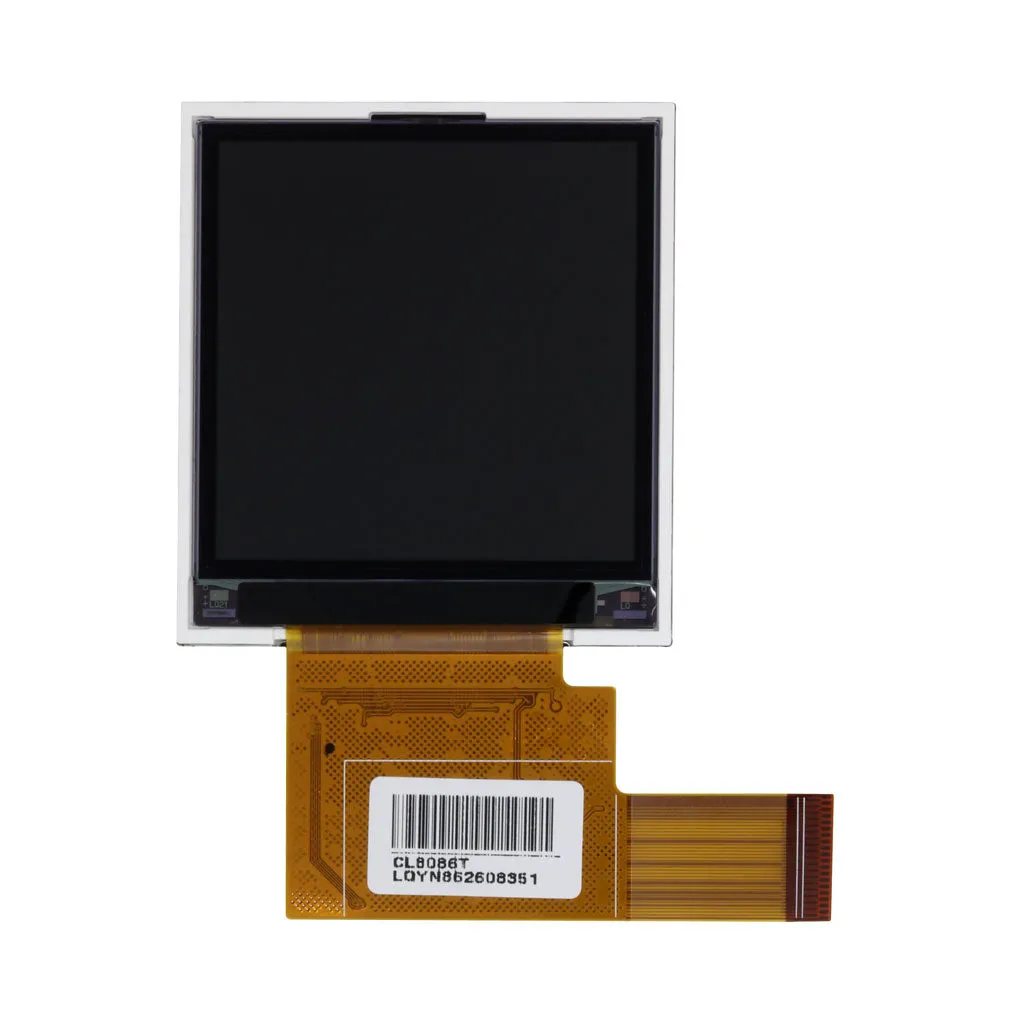

A single TFT LCD replacement for TFT kits. NOT a replacement LCD for original LCD kits. It is only a replacement LCD compatible with aftermarket TFT LCD kits. Compatible with:
- Works with TFT kits for Game Boy Pocket.
INCLUDED:
- 1x TFT LCD
DOCUMENTATION:
WARNINGS:
-
Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
-
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
LCD SPECIFICATIONS:
Screen Size
|
2.2inch
|
Screen Type
|
TN
|
Resolution
|
320X320
|
Pixel
|
0.123X0.123
|
Display Dimension
|
39.36X39.36
|
Viewable Dimension
|
42.4X42.4
|
Outside Dimension
|
51.8X47.4
|
Luminance
|
160
|
Contrast Ratio
|
120
|
Viewable Angle
|
40/50/90/90
|
Operating Mode
|
RGB565
|
Best Viewing Angle
|
6~7 0'clock
|
Response Time
|
40msec
|
Color arrangement
|
RGB
|
Optical Source
|
LED
|
Touch Panel
|
RTP
|
Interface
|
RGB565
|
Driving Voltage
|
3.0V
|
Operating Environment
|
-20 70 ℃
|
